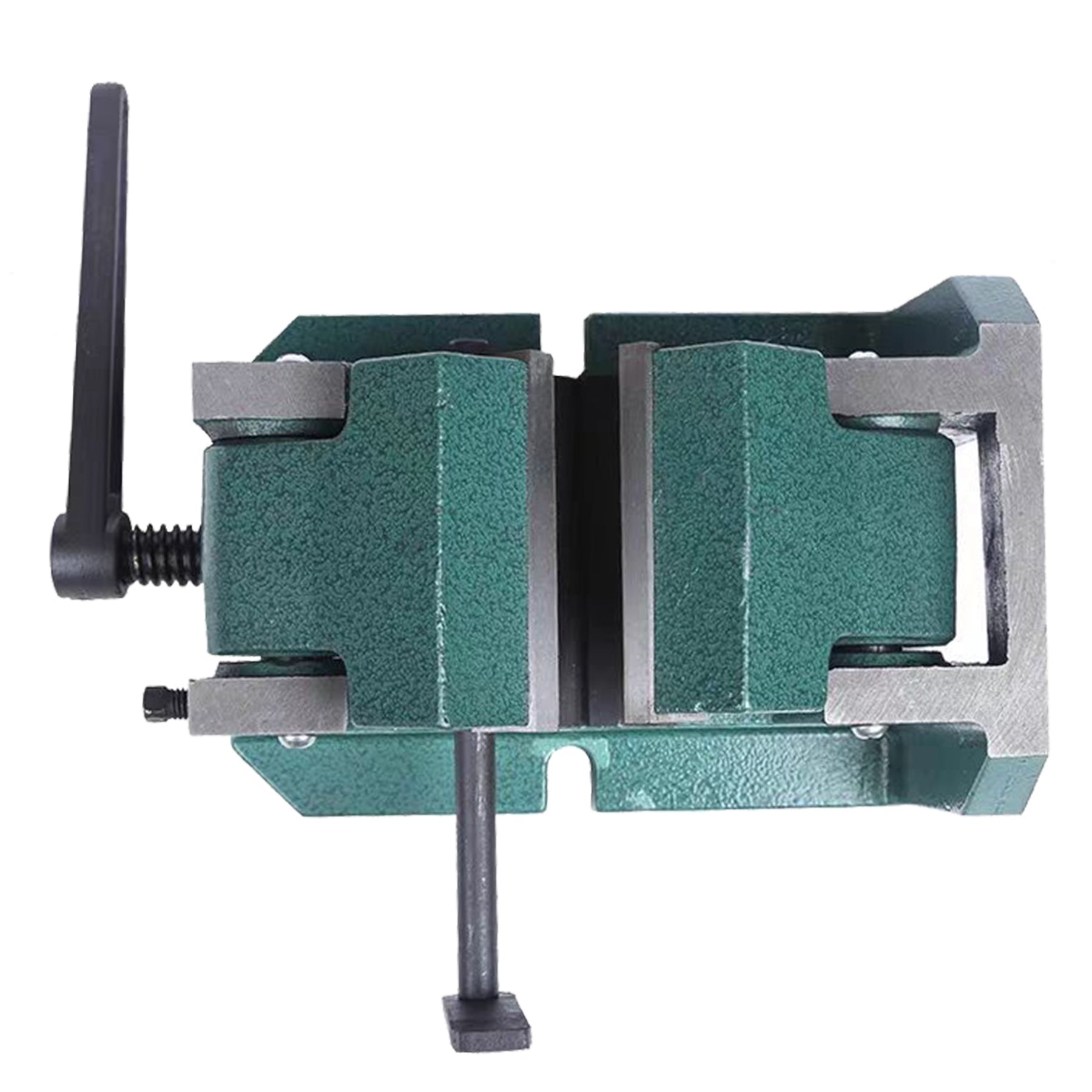

4" Self Centering Milling Machine Vise Round Hardened
Fitted on the table of the machine as uprightand horizontal,the bottom of upright and horizotional is vertical.Centered clamping of workpieces is pressured on the v-block by two wobbing movable jaws.
According to the diameters ofits holding part,thedouble side v-block can be placed reversiblly.the vice is fitted with a stop for location of the parts.
Used to help machines in making some kinds of slots,holes and faces,suitable fo holding the workpieces of cylinder.
Jaw Width: 4"
Jaw Opening (Double Station): 3.54"
Jaw Opening (Single Station): 9.25"
Jaw Plate Height: 1-1/2"
Jaw Plate Thickness: 0.590"
Center of Jaw Plate Thread Hole to Vise Bed: 0.689"
Bed Height: 2.50" +/-0.0005"
Jaw Plate Threads: 3/8"-16
Jaw Plate Threads Spacing: 2.50"
Overall Length: 15.95"
Clamping Repeatability: +/-0.0002"
Weight: 50 Lbs
