Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6” - [variant_title]
Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6” - [variant_title]

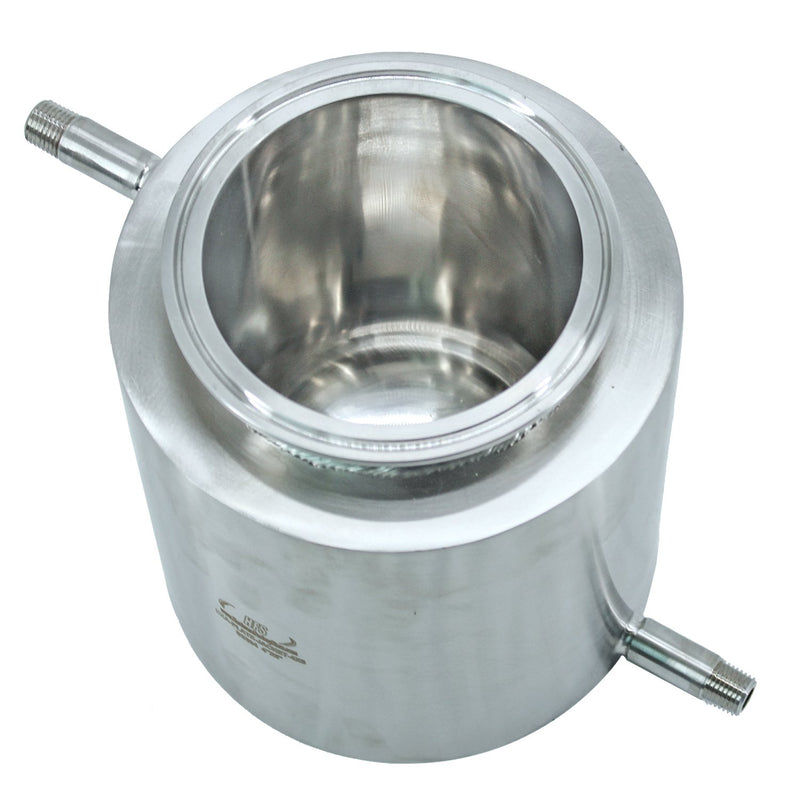

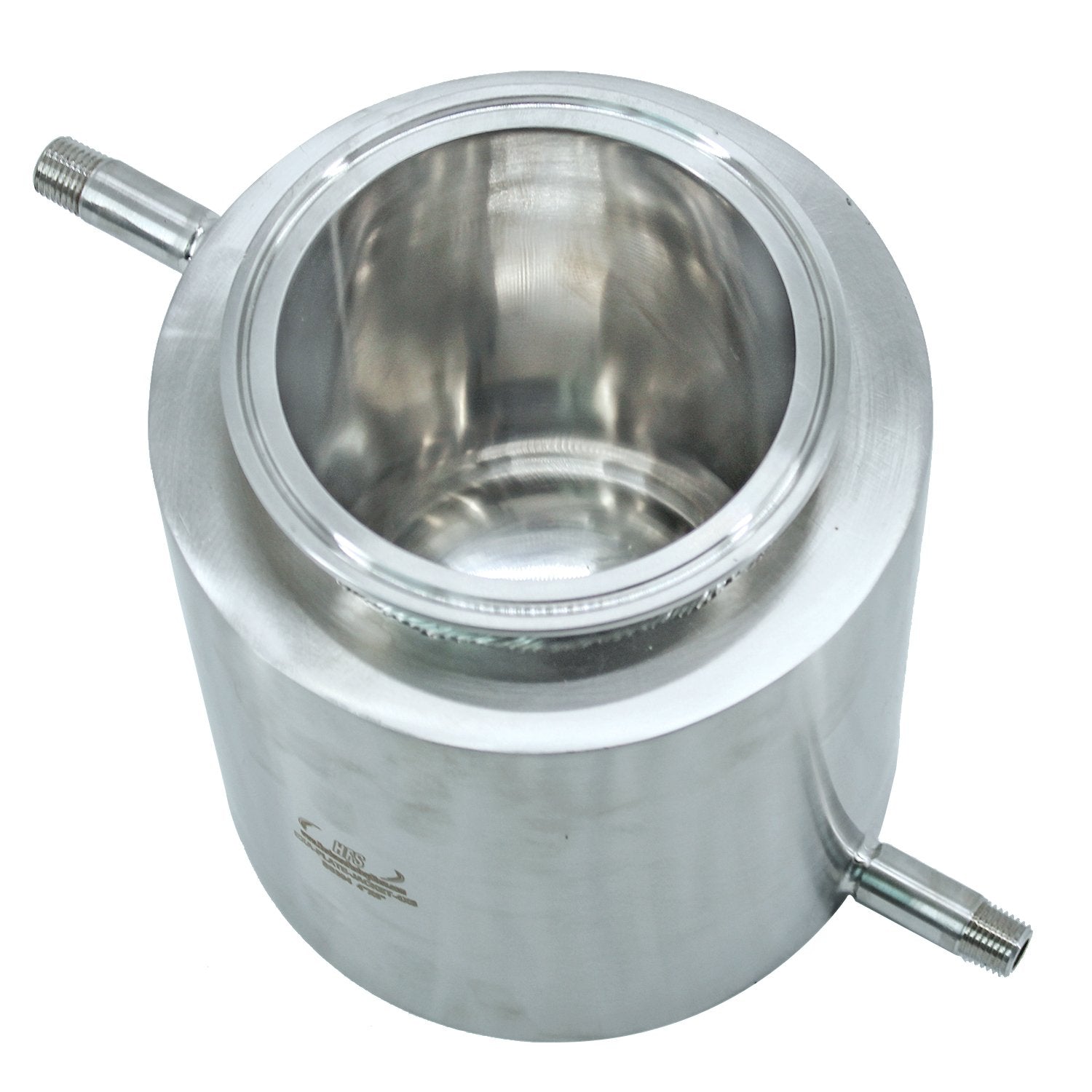

Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes
Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes
Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes
  • Load image into Gallery viewer, Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6” - [variant_title]
  • Load image into Gallery viewer, Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6” - [variant_title]
  • Load image into Gallery viewer, Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes
  • Load image into Gallery viewer, Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes
  • Load image into Gallery viewer, Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes

Stainless Steel Tri Clamp Jacketed Collection Plate Multiple sizes

Regular price
$190.00
Sale price
$190.00
Regular price
Sold out
Unit price
per

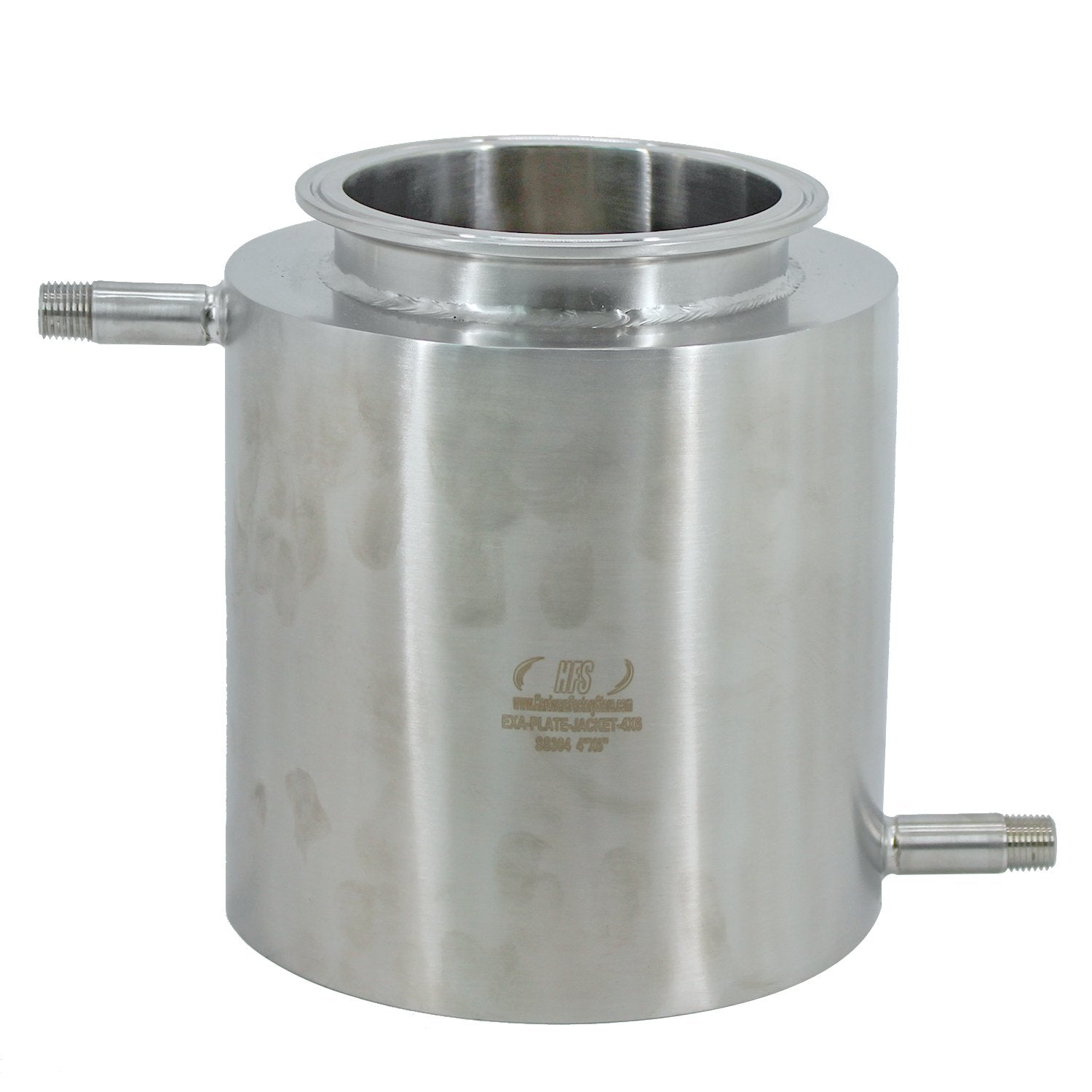

SKU :EXA-PLATE-JACKET-4X6

Specifications
Plate Size: 4x6in
Hydrocarbon Capacity: 1.33-1.67LBS
Liquid Volume: 1.08L
Jacket Volume: 1.35
Jacket Connection Type: (2) ¼” MNPT
Vessel Material: Stainless Steel
Maximum Pressure: 100 PSI

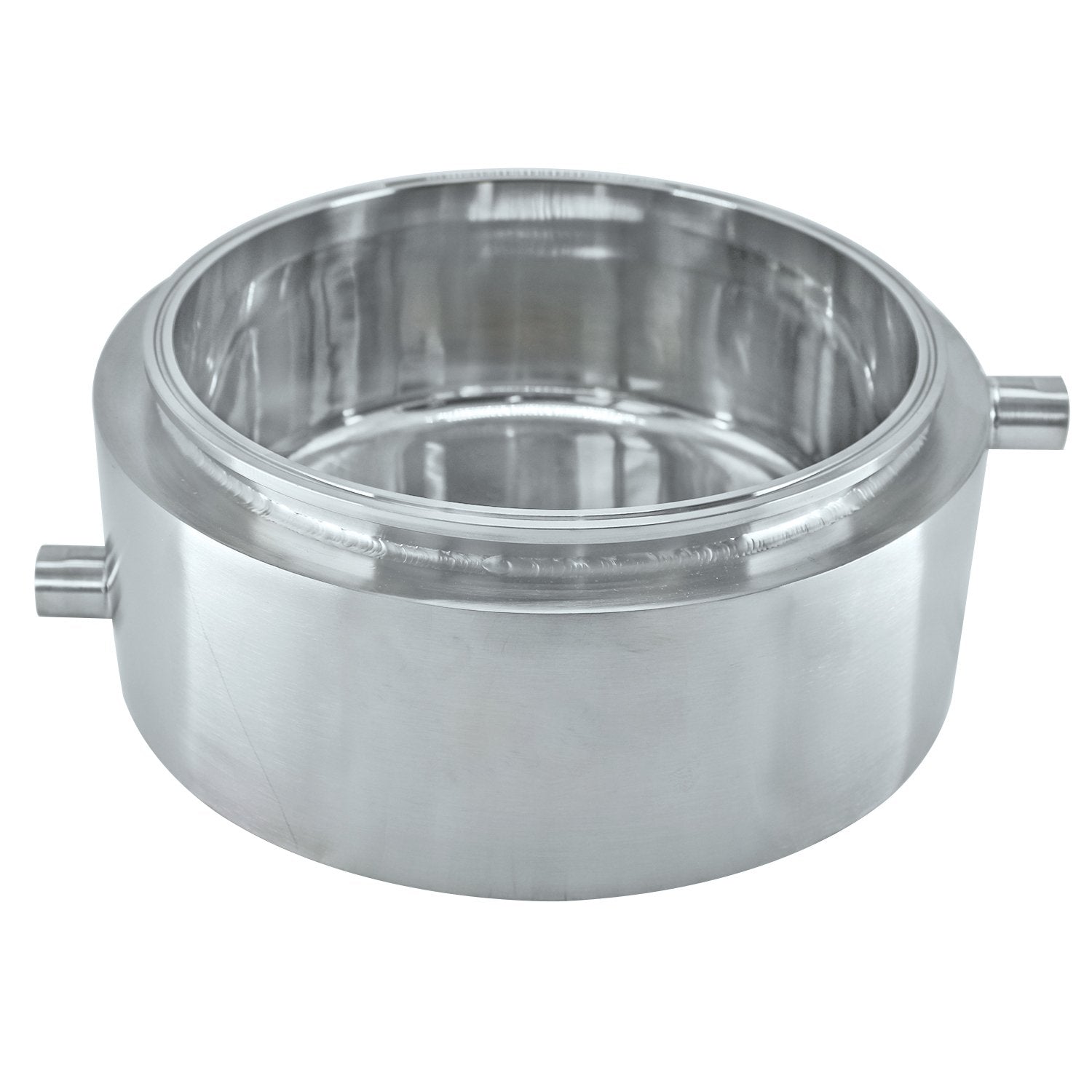

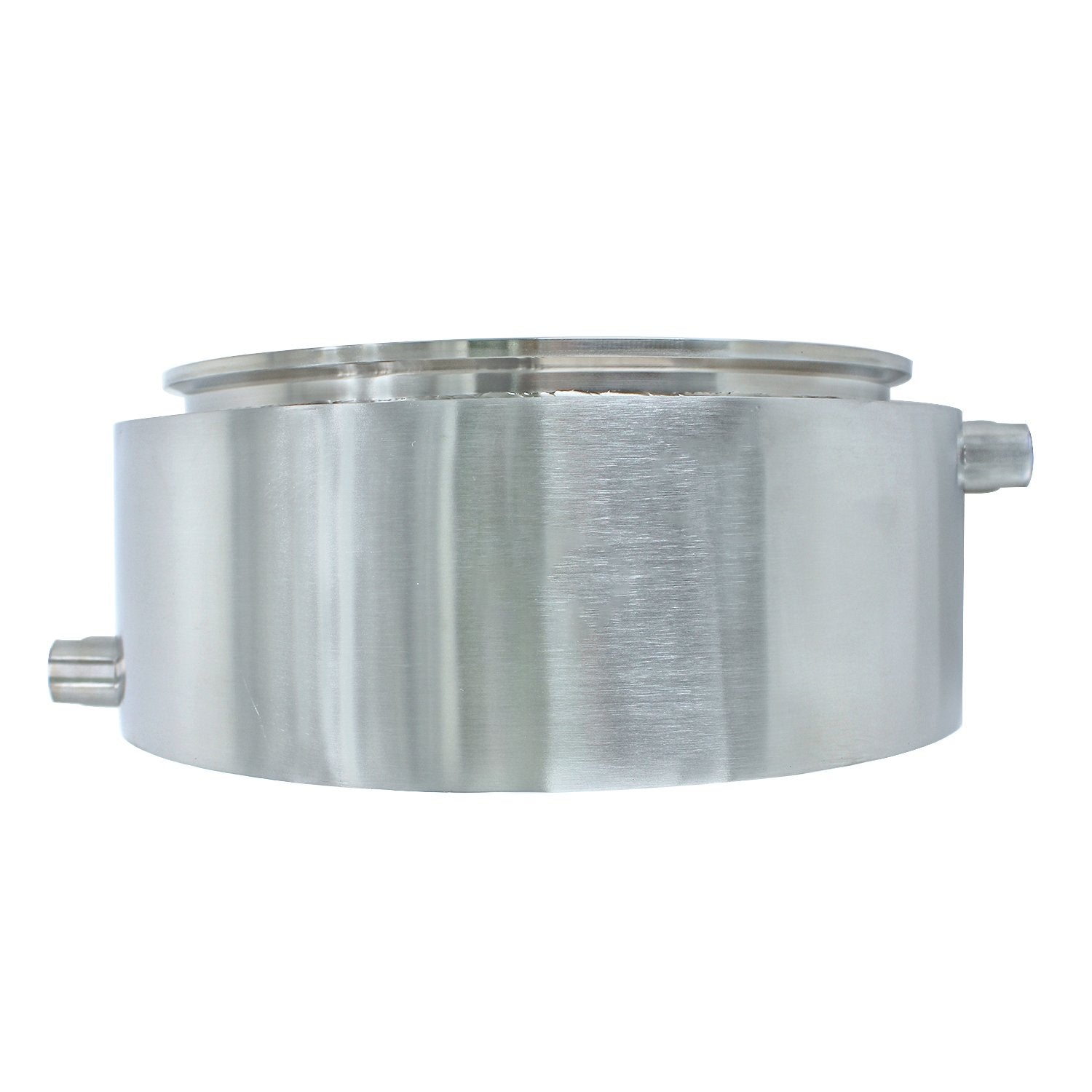

SKU :EXA-PLATE-JACKET-8X4

Material: Stainless Steel
Tri Clamp Size (IN): 8
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 2X FNPT 3/8
Jacket OD (IN): 10
Jacket Length (IN): 4.25

Specifications: Plate
Diameter (IN): 8
Height (IN): 4
Radius (IN): 4
Volume (Cu In): 200.96
Fluid Capacity (L): 3.29
Fluid Capacity (Gal): 0.87
Butane Capacity (LBS): 3.56 - 4.44
Propane Capacity (LBS): 2.81 - 3.52

Specifications: Jacket
Fluid Capacity (L): 2.17
Fluid Capacity (Gal): 0.57
SKU :EXA-PLATE-JACKET-10X4
Material: Stainless Steel
Tri Clamp Size (IN): 10
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 2 x FNPT 1/4
Jacket OD (IN): 12
Jacket Length (IN): 4.25


Specifications: Plate
Diameter (IN): 10
Height (IN): 4
Radius (IN): 5
Volume (Cu In): 314.00
Fluid Capacity (L): 5.14
Fluid Capacity (Gal): 1.36
Butane Capacity (LBS): 5.56 - 6.94
Propane Capacity (LBS): 4.40 - 5.50

Specifications: Jacket
Fluid Capacity (L): 2.72
Fluid Capacity (Gal): 0.72
