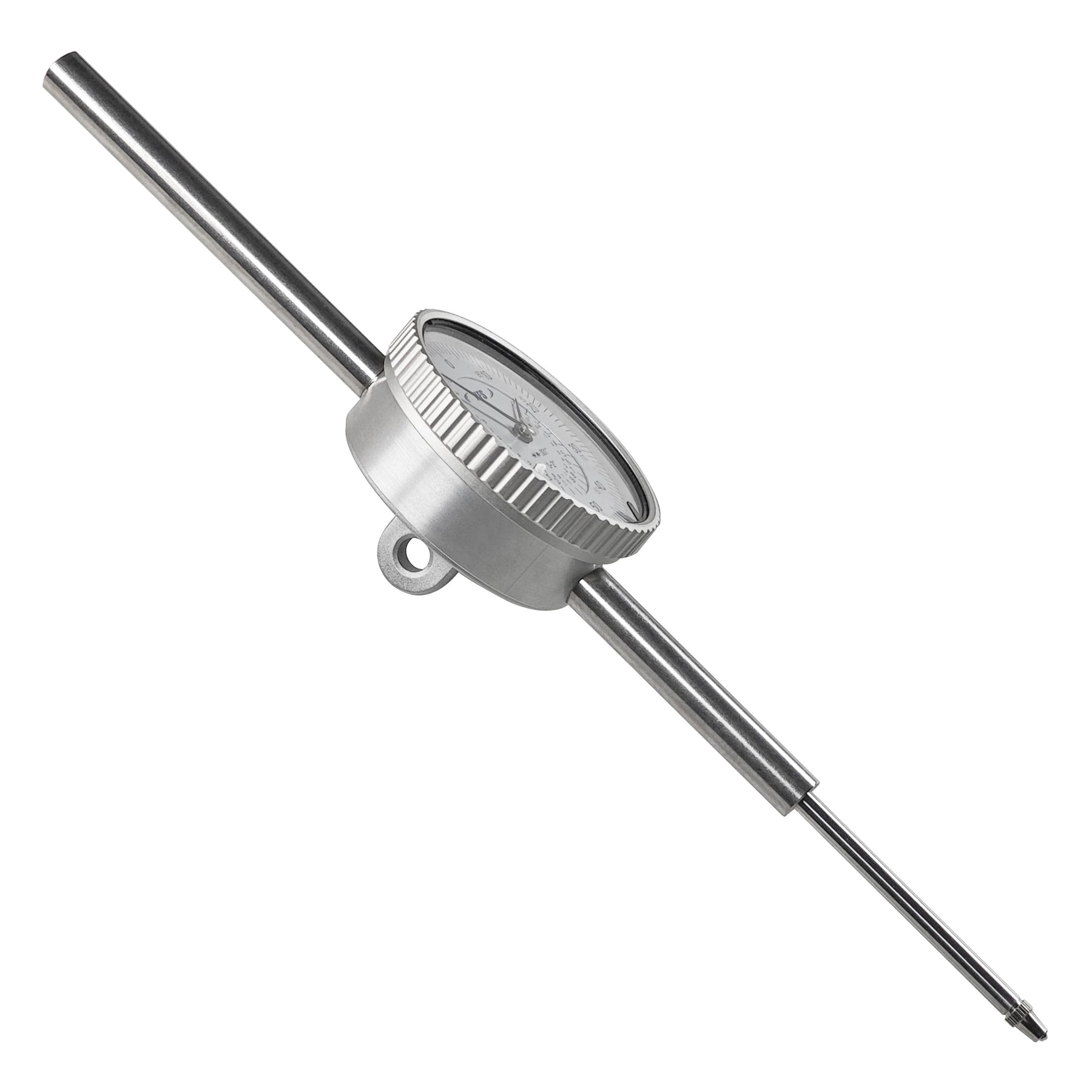

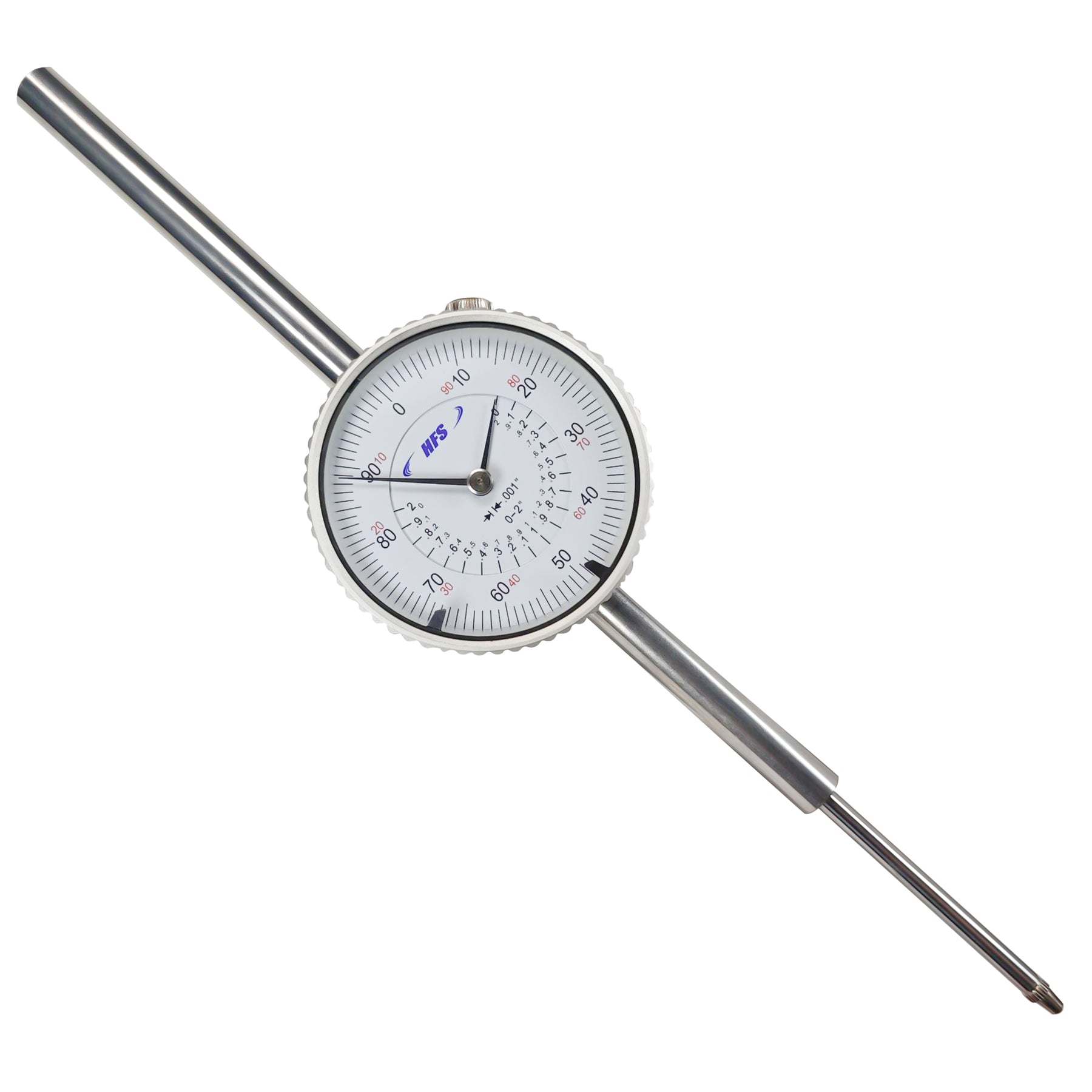

HFS Dial Indicator, 0-1" Range, 0.001" Graduation, 1/4" Lug Back - Metal dial indicator for lathe, runout and alignment checks with 3/8" stem, rotating bezel and hardened contact point.

HFS SKU: 16570
Range
Graduation
Regular price $19.99
/
Only 123 items in stock!
  • We currently only offer shipping to addresses within the US
  • Sustainably made
  • Secure payments
  • Precise Readings: 0-1" measuring range with 0.001" graduations provides clear readings for runout, alignment and comparative measurement tasks.
  • Easy Zero Setting: Rotating bezel makes zero adjustment quick and simple, while the bezel lock helps hold the selected reference position during measurement.

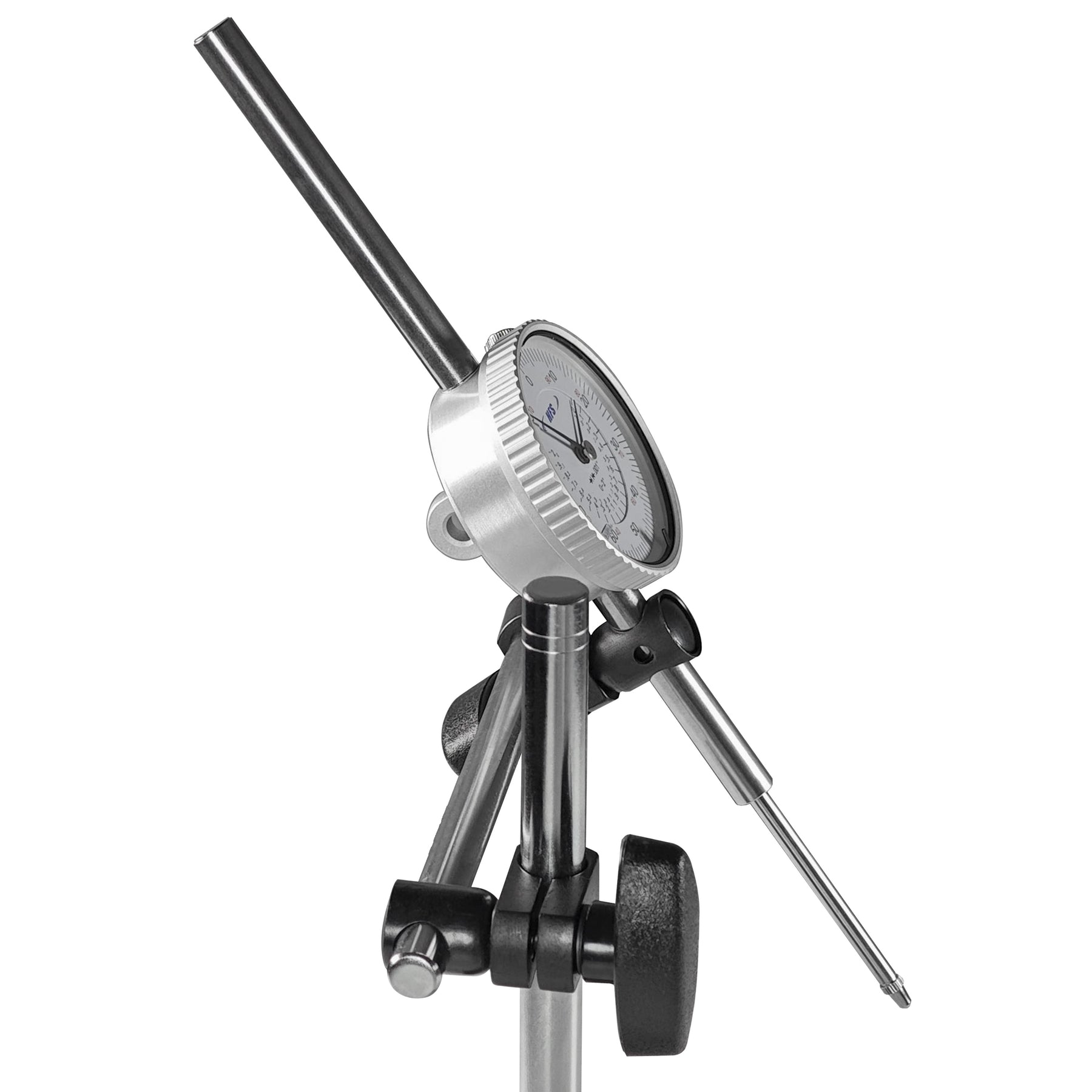

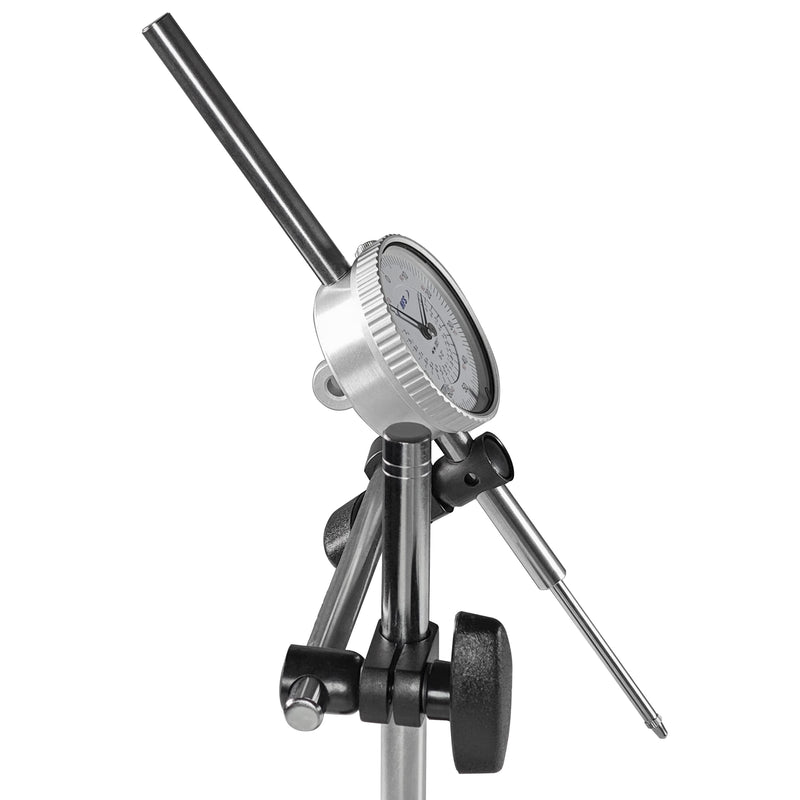

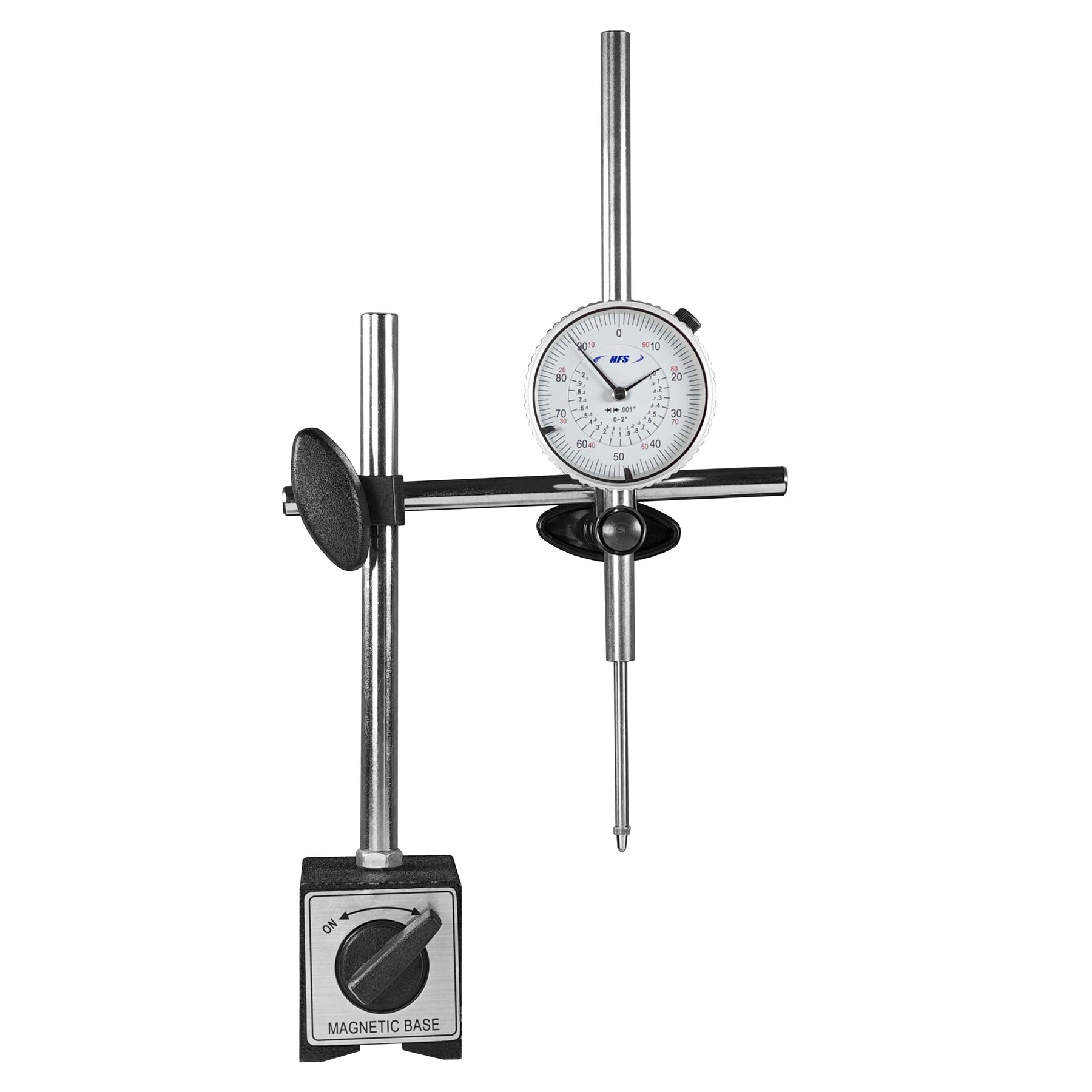

  • Versatile Mounting: 1/4" diameter lug hole and 3/8" stem provide convenient mounting options with compatible indicator holders and measuring setups.
  • Durable Contact Point: Interchangeable hardened contact point provides dependable workpiece contact for repeated use in machining and inspection applications.
  • Built For Machining: Ideal for lathe setup, runout checks, workpiece alignment, comparative measurement and general workshop quality-control tasks.

HFS Dial Indicator for Machining and Inspection
The HFS dial indicator provides a 0-1" measuring range with 0.001" graduations for checking dimensional variation in machining, workshop and inspection applications. The clear mechanical dial is well suited for runout checks, workpiece alignment and comparative measurements.
A rotating bezel allows quick zero adjustment, while the bezel lock helps maintain the selected reference position during measurement. For flexible installation, the indicator features a 1/4" diameter lug hole and a 3/8" stem for use with compatible indicator holders and measuring setups.
The interchangeable hardened contact point provides dependable contact with the workpiece during repeated measurements. Its mechanical design requires no batteries, making it a practical measuring tool for lathes, machining setups, inspection stations and general workshop use.
Specifications: Measuring Range: 0-1"; Graduation: 0.001"; Lug Hole Diameter: 1/4"; Stem Diameter: 3/8".
