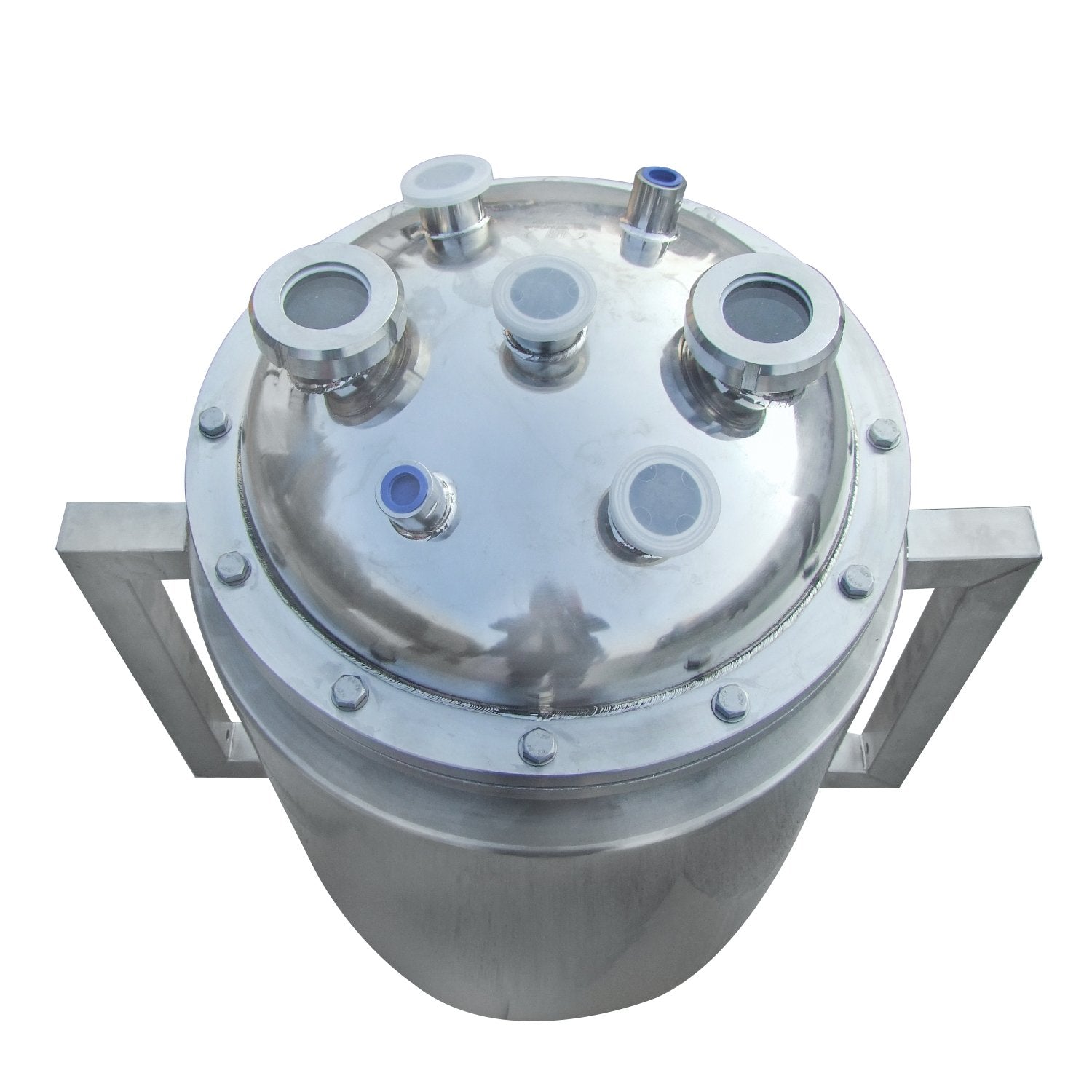

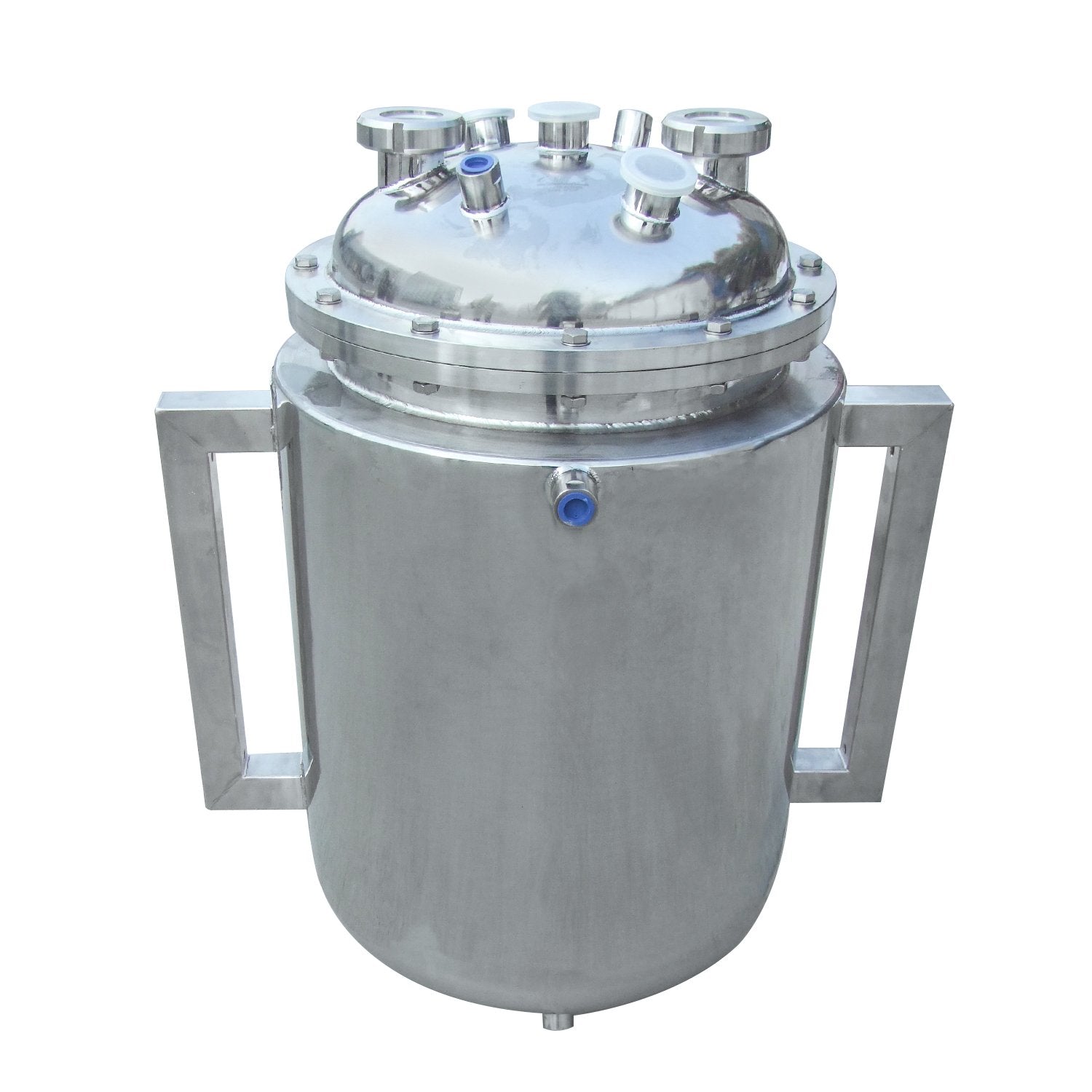

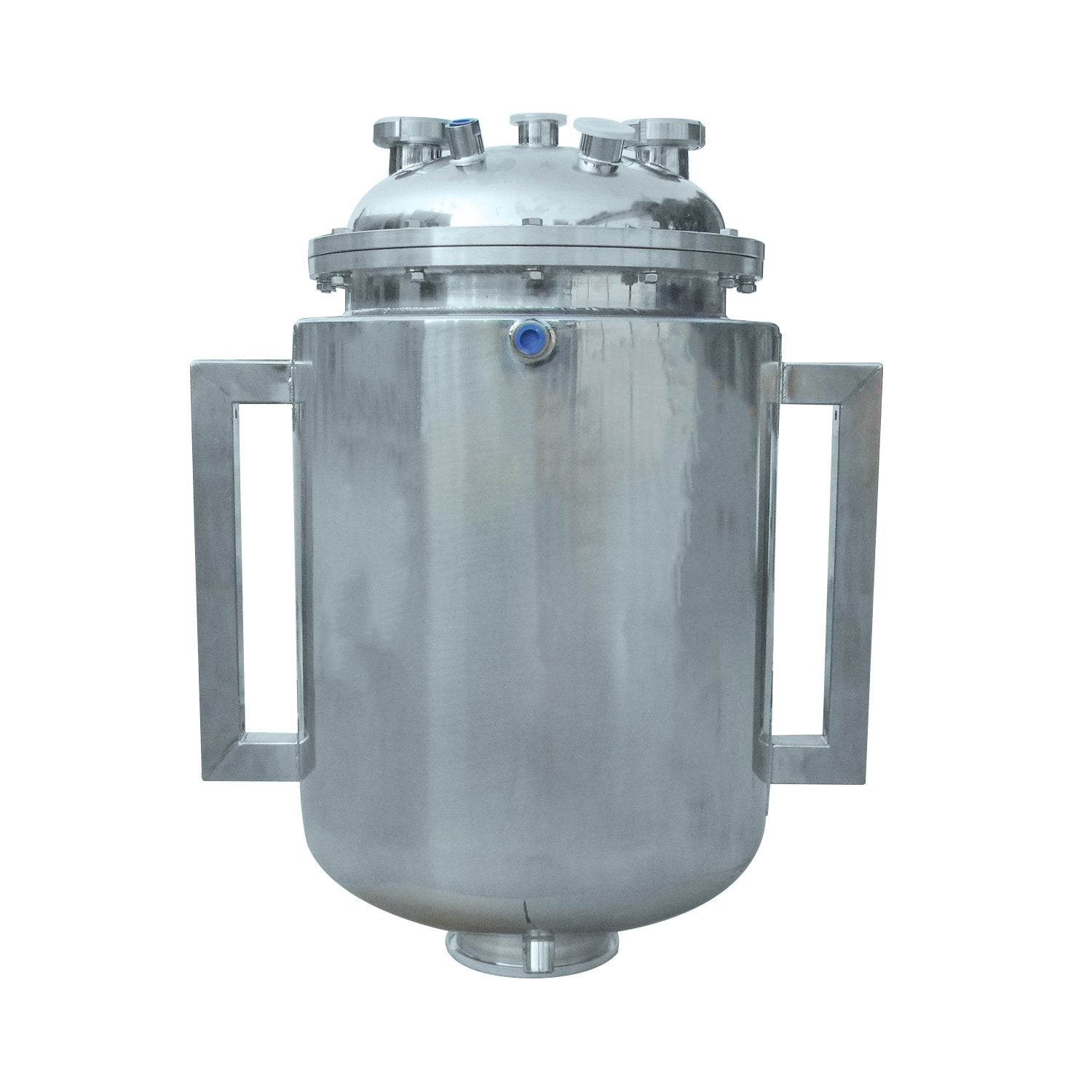

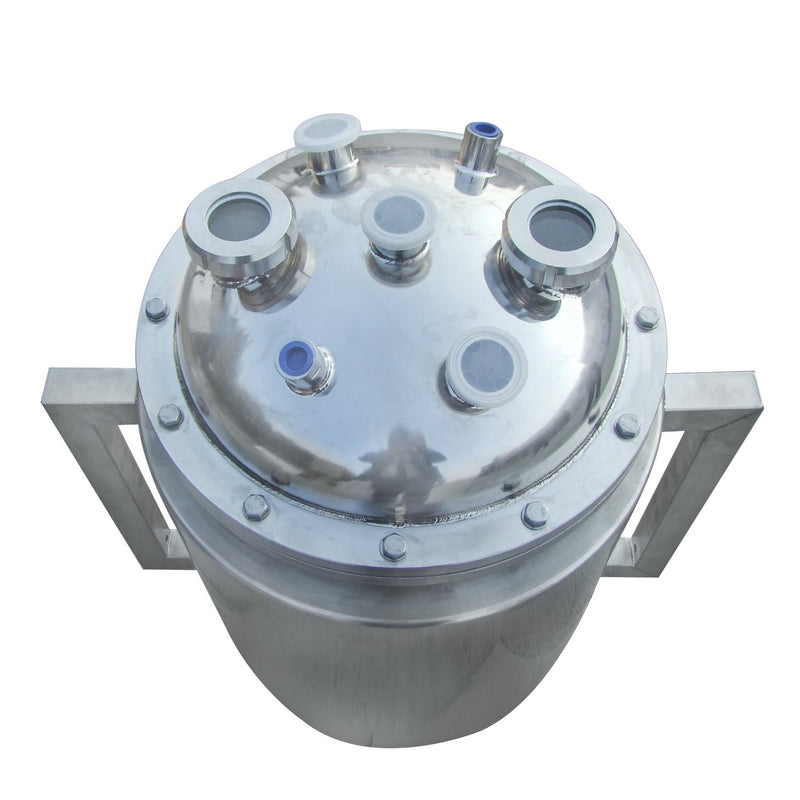

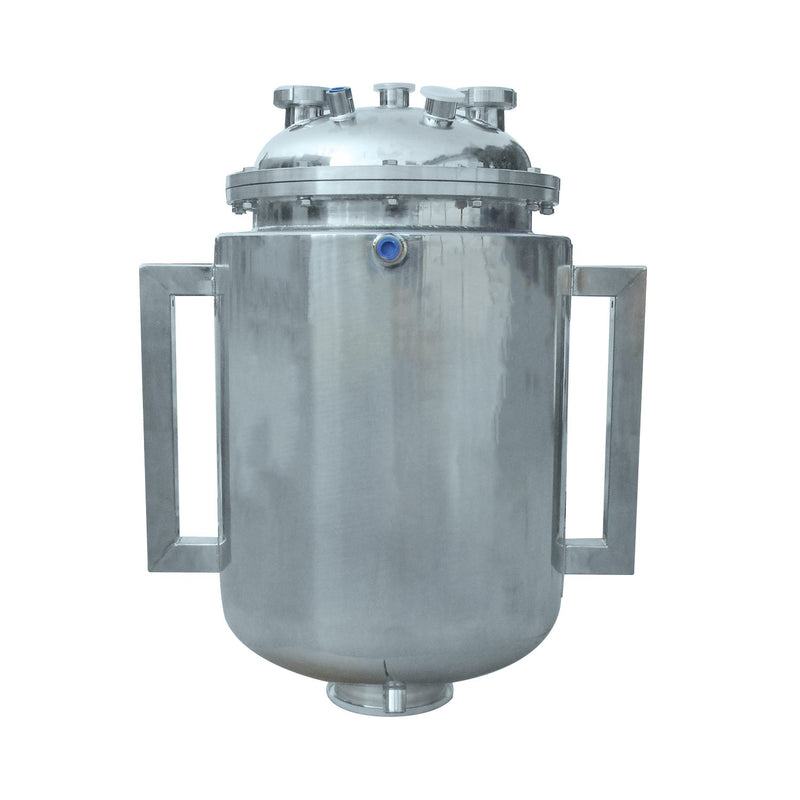

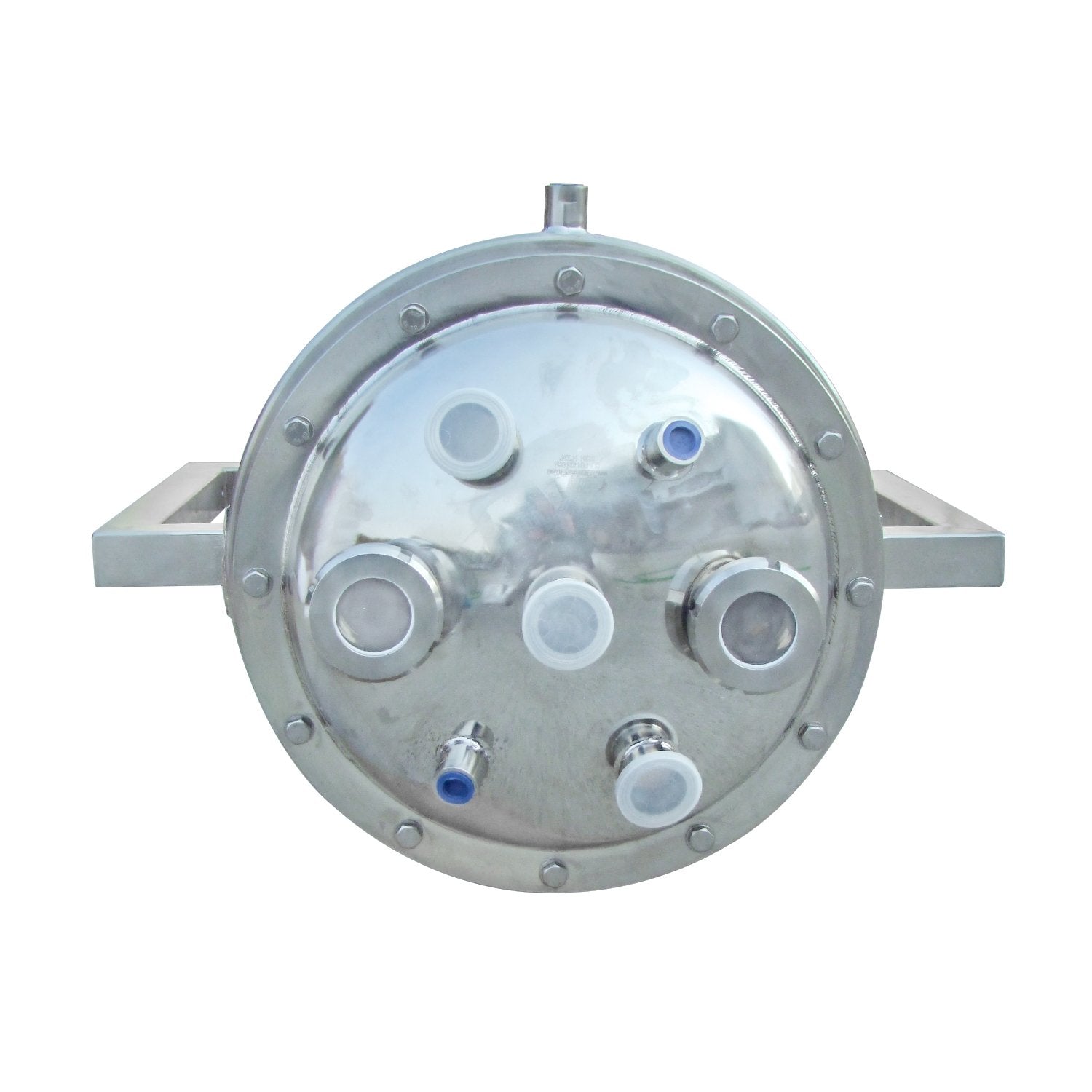

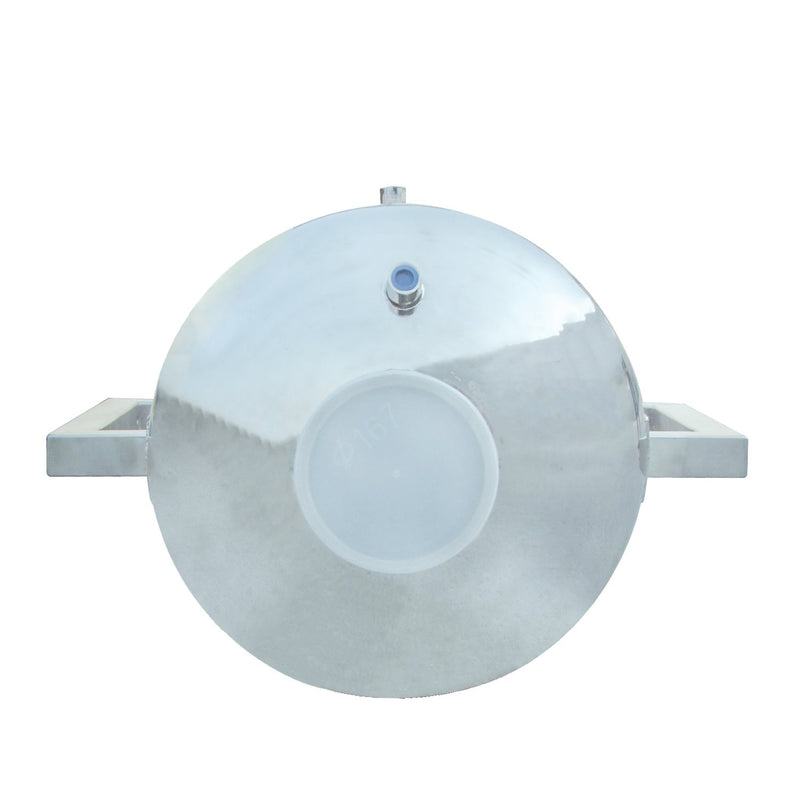

HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
  • Load image into Gallery viewer, HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
  • Load image into Gallery viewer, HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
  • Load image into Gallery viewer, HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
  • Load image into Gallery viewer, HFS(R) 14x24'' Jacketed Vessel with Mounting Arms
  • Load image into Gallery viewer, HFS(R) 14x24'' Jacketed Vessel with Mounting Arms

HFS(R) 14x24'' Jacketed Vessel with Mounting Arms

Regular price
$2,500.00
Sale price
$2,500.00
Regular price
Sold out
Unit price
per

Features: Vessel
Material: Stainless Steel
Lid Type: Bolted
Top Connection (IN): 3x Tri Clamp 1.5
Top Connection (IN): 2x FNPT 1/2
Bottom Connection (IN):Tri Clamp 6
Gasket Type:Viton
Sight Glass Size: (IN): 2
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): FNPT 1/2
Jacket OD (IN): 18
Jacket Length (IN): 24
Specifications: Vessel
Diameter (IN): 14
Height (IN): 24
Radius (IN): 7
Volume (Cu In): 3692.64
Fluid Capacity (L): 60.45
Fluid Capacity (Gal): 15.99
Butane Capacity (LBS): 65.33 - 81.67
Propane Capacity (LBS): 51.72 - 64.66
Biomass Capacity (LBS): 19.06 - 27.22
3A Sieve Capacity (LBS): 108.89
Nugget Ice Capacity (LBS): 87.11
Specifications: Jacket
Fluid Capacity (L): 43.26
Fluid Capacity (Gal): 11.44
Sleeve Ice Capacity (LBS): 62.33

Specifications: Sight Glass
Body Material: Stainless Steel
Glass Material: Borosilicate
Glass Sealing Material: PTFE and Viton
Max Pressure: 100 PSI
